Design Statistic
- The Statistic function is to report leaf cells and sub-modules in the design.

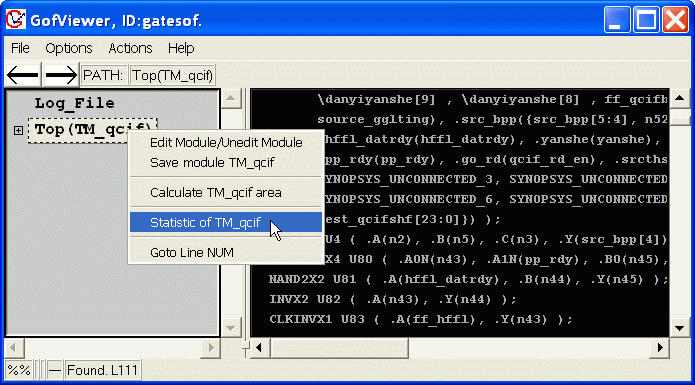

- On the hierarchical window, choose one instance(module) item.
- Click Mouse-Right-Button to pop up menu.
- Select 'Statistic of the design'.
![](./user/image/nandigits_statistic_0i.gif)

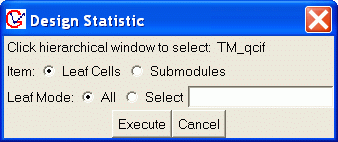

- Design Statistic window pops up.
![](./user/image/nandigits_statistic_1i.gif)

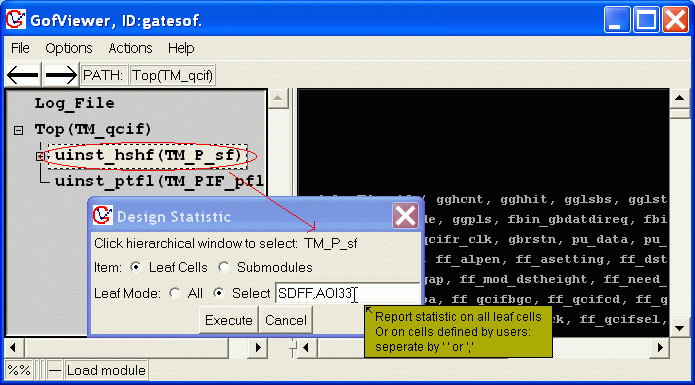

- The top line indicates which module has been selected.
- You can click on hierarchical window any time to change the module.
![](./user/image/nandigits_statistic_7i.gif)
- The second line is for Leaf Cells or Sub-modules report selections.
- If Leaf Cells option is selected, you can choose to report all leaf cells or the leaf cell you have interest at the third line.

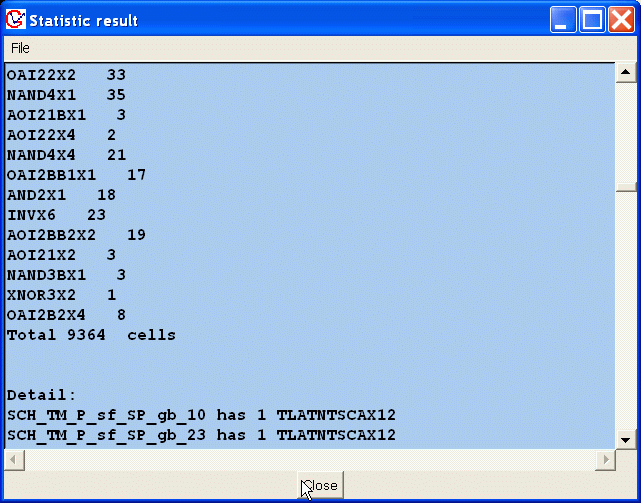

- The below window is reporting all leaf cells.
![](./user/image/nandigits_statistic_2i.gif)

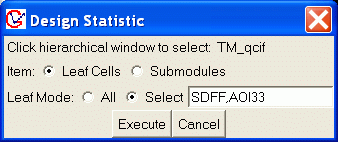

- You can choose to report any cell name having string 'SDFF' or 'AOI33' inside.
- It is useful when you want to report some special cells like FlipFlop or Complex cell like AOI33...
![](./user/image/nandigits_statistic_3i.gif)

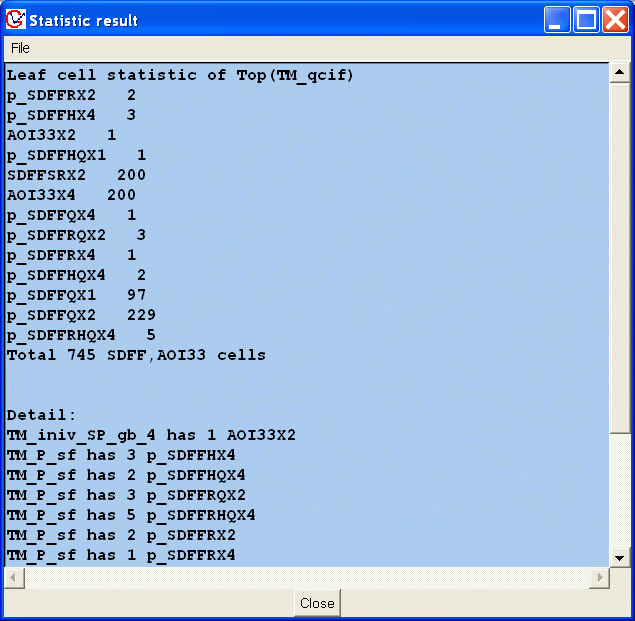

- The below window shows the cells matching SDFF and AOI33.
![](./user/image/nandigits_statistic_3j.gif)

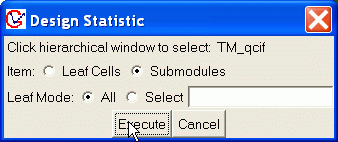

- Choose to report sub-modules.
![](./user/image/nandigits_statistic_4i.gif)

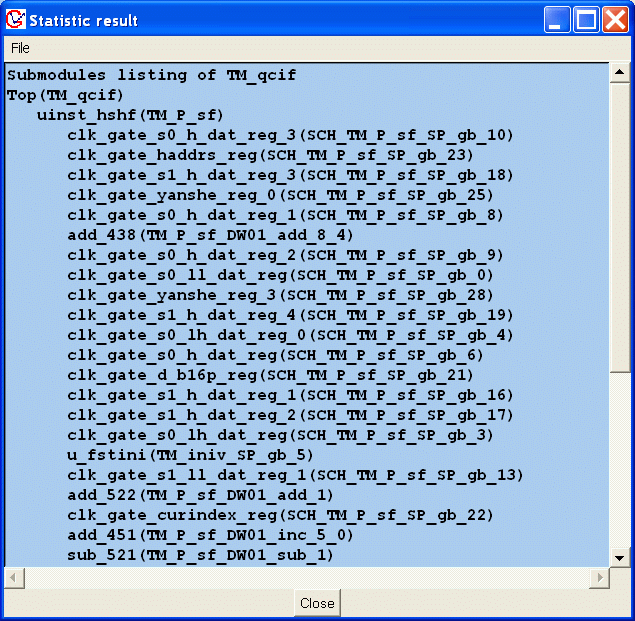

- The below window reports all sub-modules in TM_qcif module.
![](./user/image/nandigits_statistic_5i.gif)

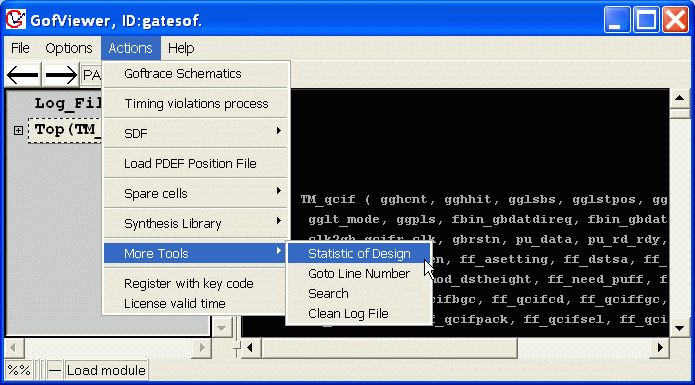

- The other way to pop up Design Statistic window.
![](./user/image/nandigits_statistic_6i.gif)
