3.11. Save ECOs

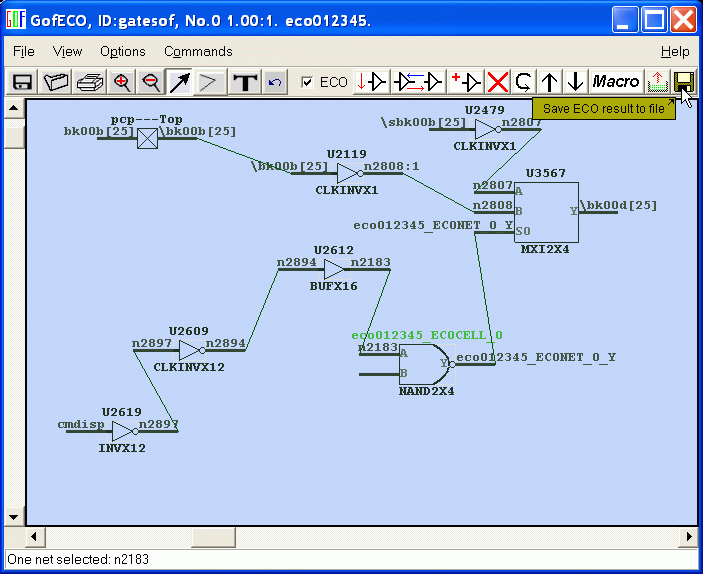

  • When everything is done, click  save button to save ECO actions.

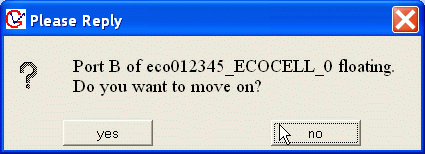

  • GofECO will check if ECO is clean. If anything is misconnected , a warning window pops up.

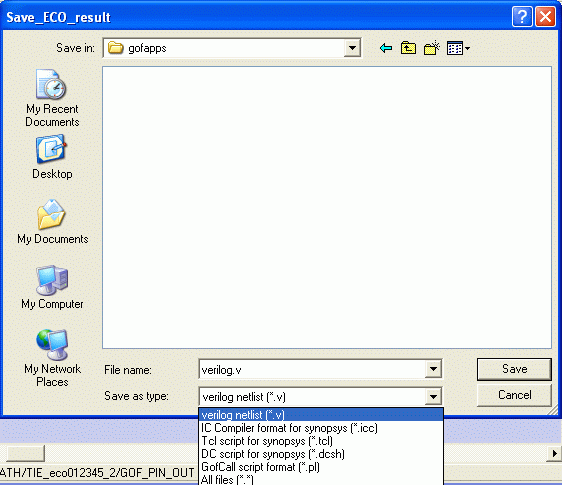

  • You can choose to save ECO result to verilog file or Synopsys TCL format file or dcsh format file.





  • Remember to run equivalent check tool or post-ECO simulation to verify ECO netlist is correct.
