2.15. Cell Position.

  • Mouse-right-click to popup menu

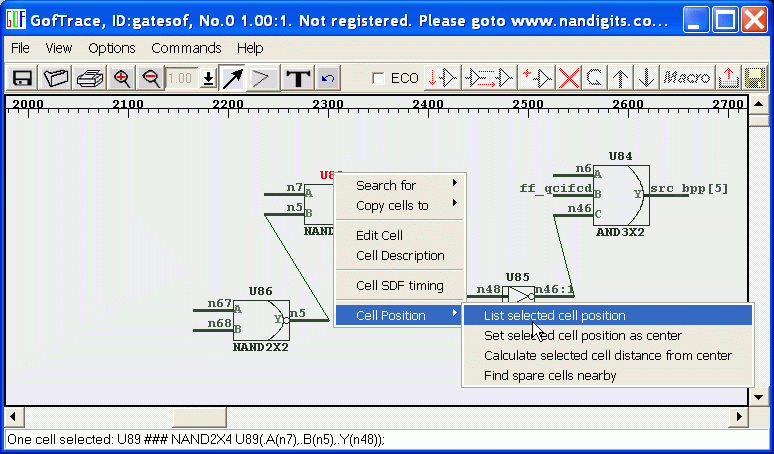

  • Select 'Cell Position > ...'

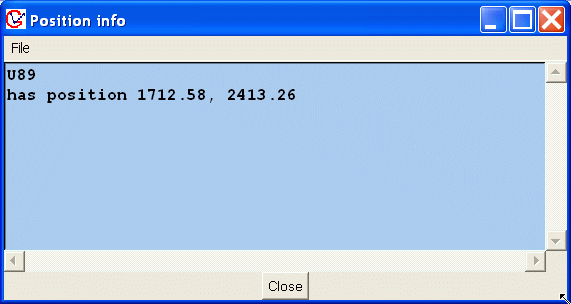

  • Position info window pops up to show the cell's position.

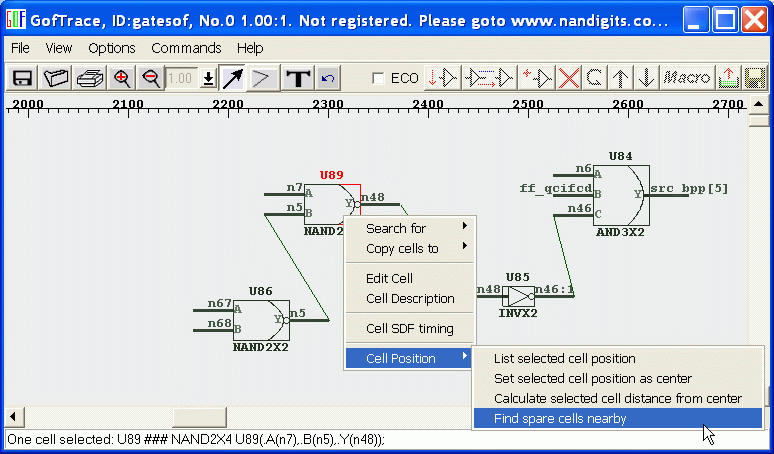

  • You can also find out the spare cells nearby.

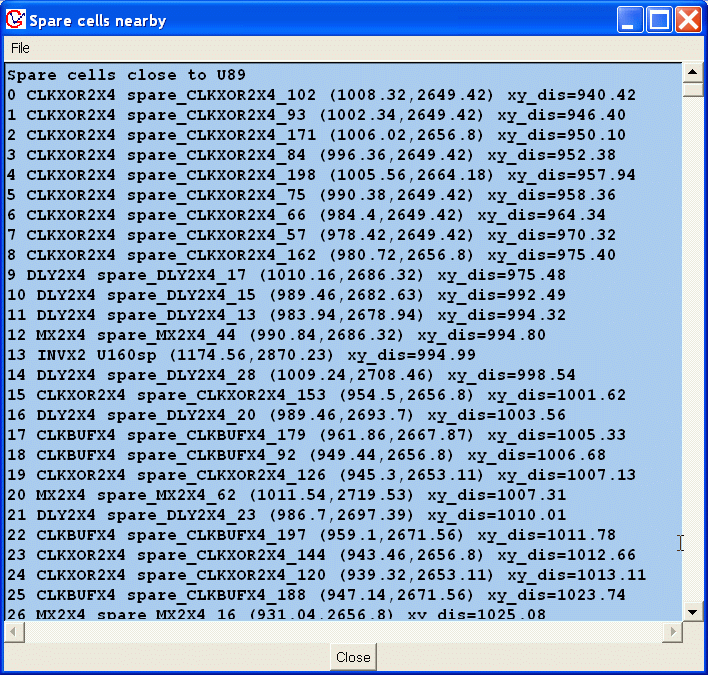

  • Spare cells nearby window pops up to show the spare cells close to the cell and the positions.



  • This feature is useful in postlayout netlist processing.
  • Remember to load PDEF position file. See Action Menu in GofViewer.
