1.1. GofViewer Overview:

• GofViewer browsers netlist in text mode. Main features
• Very large netlist editor.
• Module-break loading method.
• Flexible module/sub-modules replacement. See "open netlist".
• Netlist saving in hierarchical mode.
• Net driver searching.
• Net fanouts display.
• Launch schematic GofTrace.
• GofViewer has Menu bar "File" "Option" "Actions" and "Help".

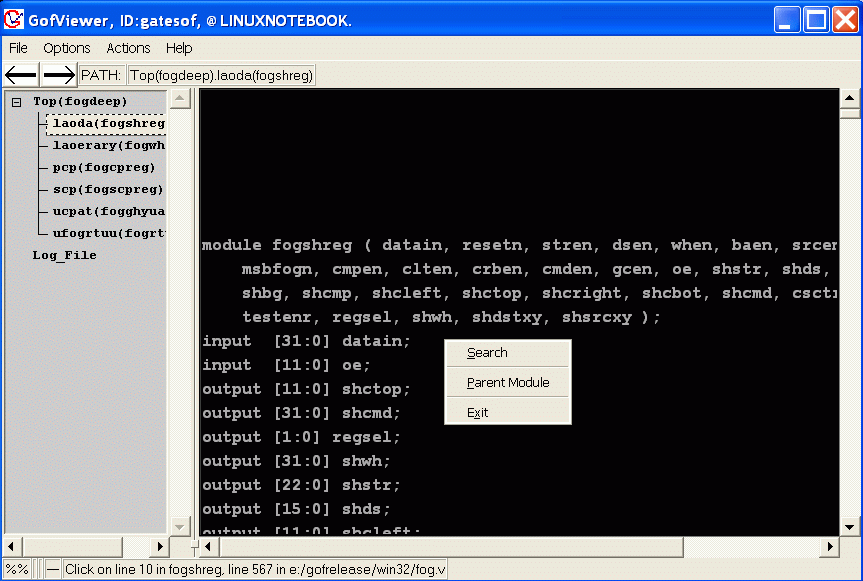

• GofViewer window lists netlist hierarchy in left side and source netlist in right side.
• Click on - + on left hierarchy window to browse structure of the netlist. Double click on one item to open the module on the right source netlist window.
• Double click on the net on source window to trace the driver of the net.

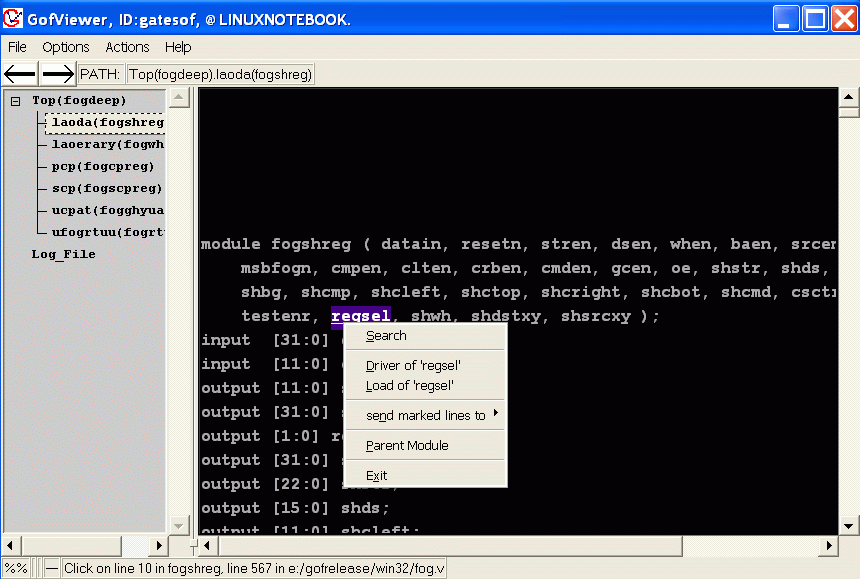

• Right click to popup Menu, the actions items in menu is different depends on selected object.
