2.11. Copy Cells To.

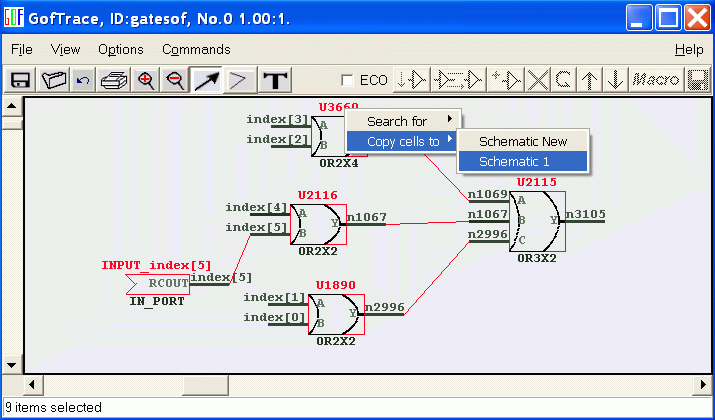

• Select cells and nets. Mouse-right-click to popup menu

• Select "Schematic New" to copy the circuit to new schematic.
• Select "Schematic 1" to copy the circuit to existing schematic 1.

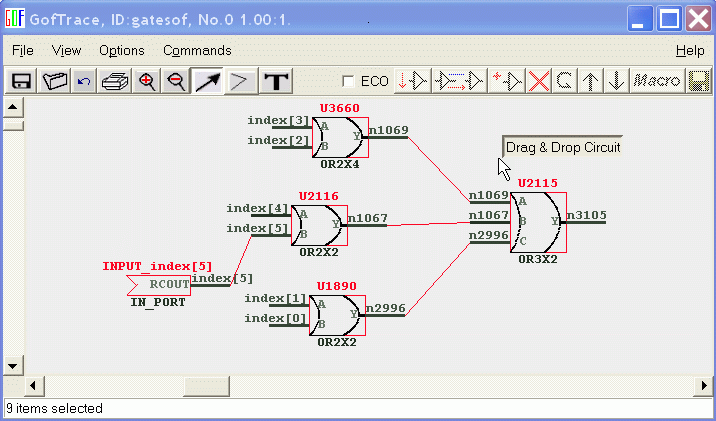

• You can also drag-n-drop between schematics.
• Mouse middle button press on selected cells don't release, move to other schematic release.
• The symbol "Drag & Drop Circuit" will go with cursor.
