View Options

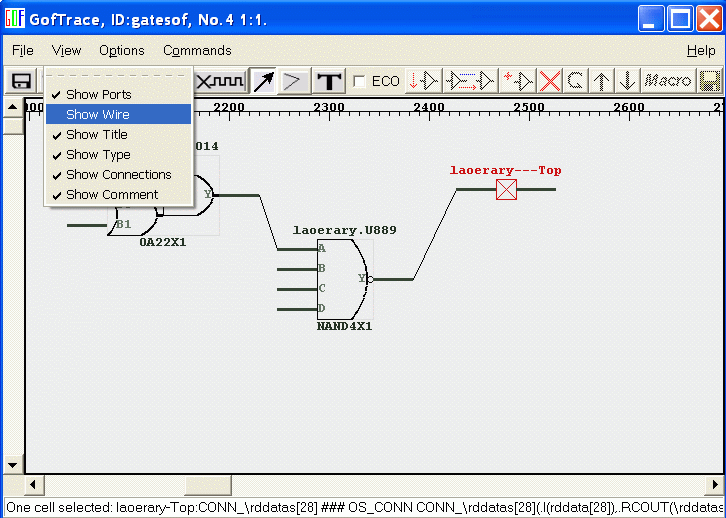

• GofTrace Menu View controls the show/hide of display items on schematic
• 'Show Port' determines if the port name in gate symbol can be displayed
• 'Show Wire' determines if the wire name can be displayed
• 'Show Title' determines if the path/instance string can be displayed
• 'Show Type' determines if the gate type can be displayed
• 'Show Connections' determines if the line connections can be displayed
• 'Show Comment' determines if the comments can be displayed
• By default, all the options are enabled
