2.21.Trace Buffers.

  • Trace buffers function can be enabled by selecting one input/output pin and mouse-right-click to pop menu and do Trace buffers.

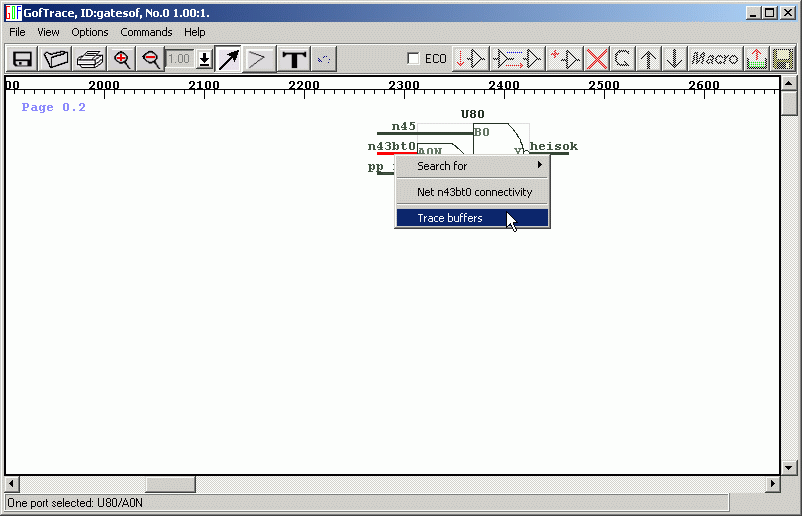

  • The pin's direction affects behavior. The following shows input pin.

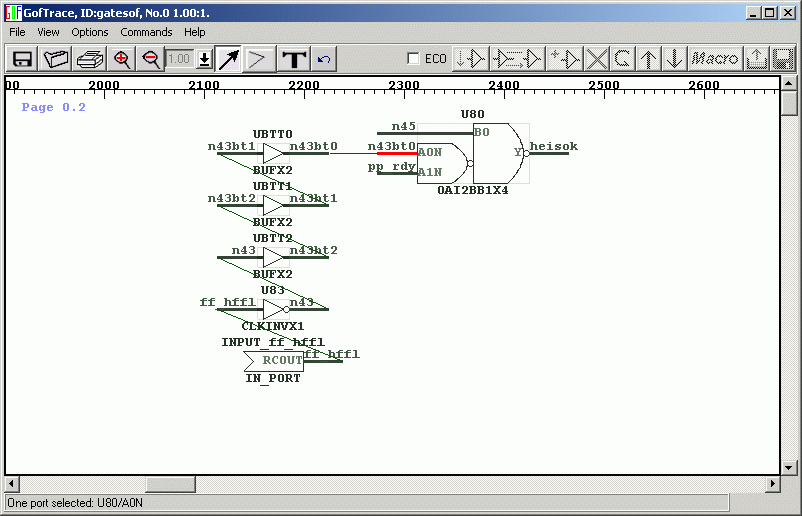

  • All the buffers/inverters are displayed on the screen until the non-buffer gate.

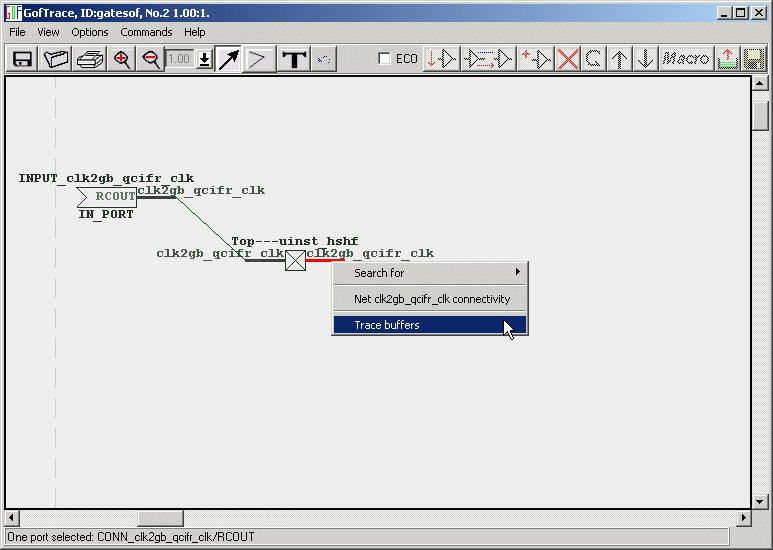

  • Select an output pin and do Trace buffers command.

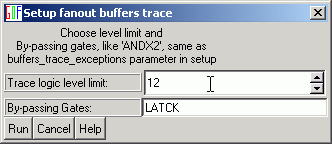

  • Setup fanout buffers trace window pops up for you to input logic level limit and by-passing gates information.
  • Logic level is how many gate level from source to destination.
  • The by-passing gate option is useful for tracing clock tree in low power design which has a lot of gated clock cell.
  • In this case the gated clock cell has naming style LATCK.

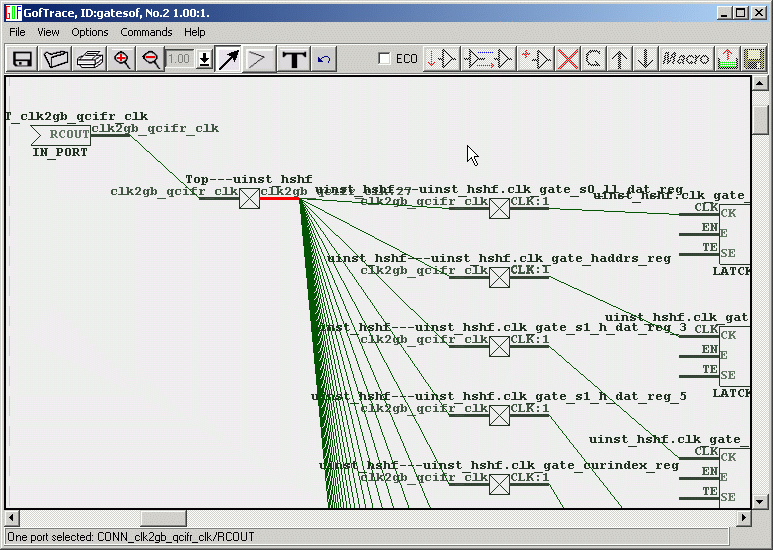

  • The clock buffer tree is displayed on the screen.

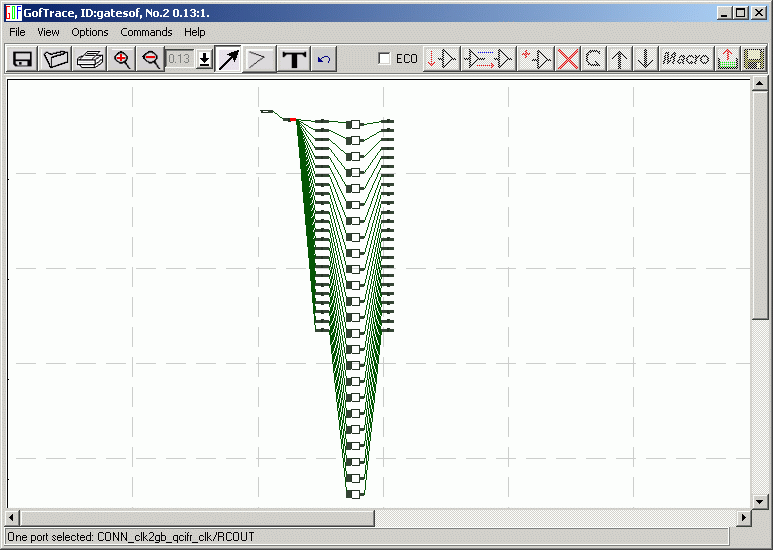

  • Zoom-out schematic.

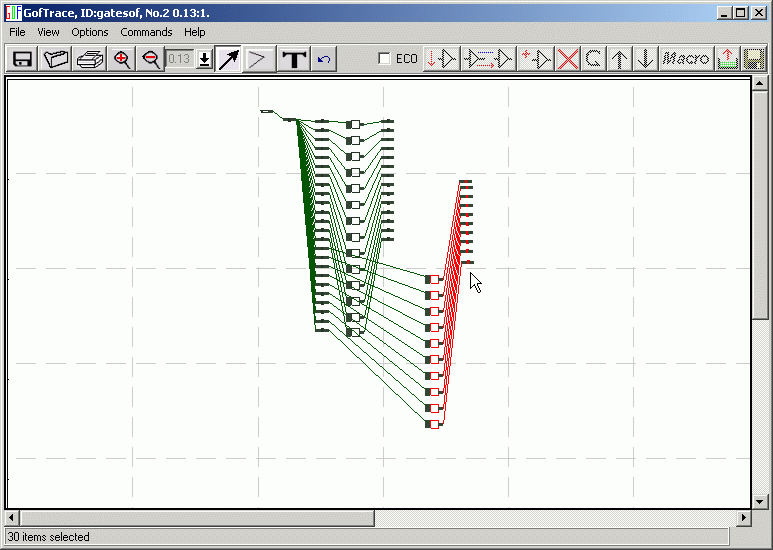

  • You can move cells anywhere you like.
