Search Gates and Nets

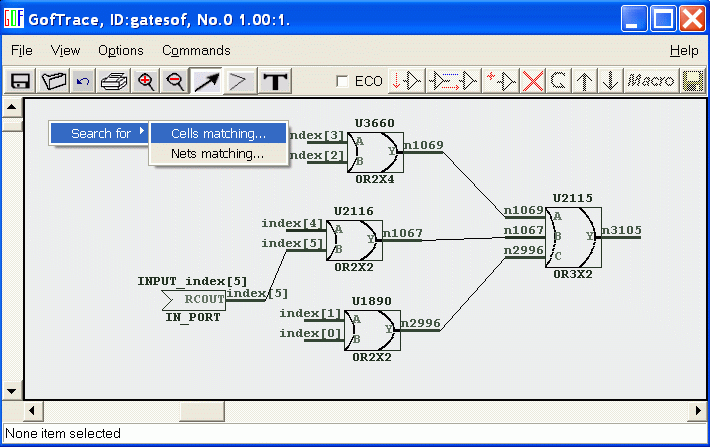

  • Click Mouse-Right-Button to popup menu, select "Search for-> Cells matching "

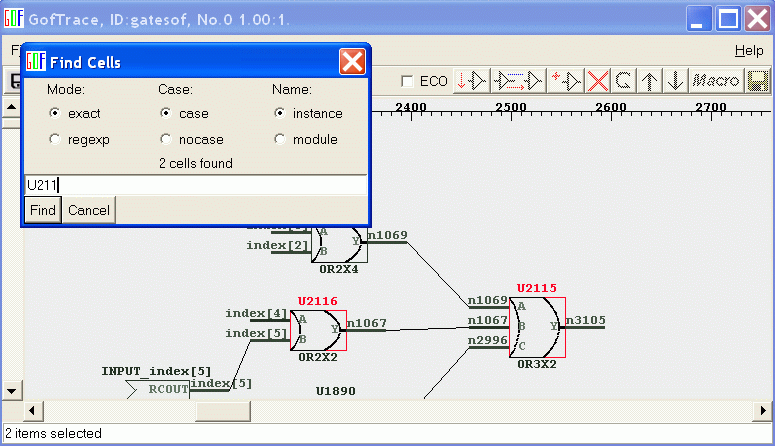

  • A 'Find Cells' window popup to type in search string. The cell name matched will be highlited.



  • If select "Search for > Nets matching...", connections matching string will be highlighted.
