Place and Route

• Click Mouse-Right-Button on the schematic to pop up menu and select Place & Route command group. Or from menu Commands->Place & Route.
• Place and Route group commands provide flexibility in creating schematics.
  • "Auto Place & Route" command is to let GOF do placement and routing automatically.
  • "Auto Place" is to place gates automatically only without routing.
  • "Auto Route" is to route wire on current gates placement.
  • "Reset Route" is to reset all wires to be straight connections.
• The purpose of these commands is to give users more control on the schematics. Since users may have better understanding of the schematic which has gates placed by themselves.

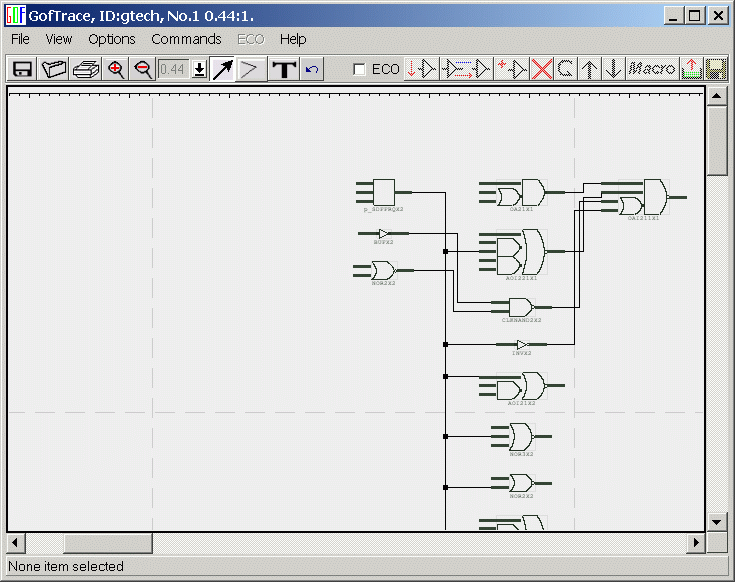

• For Example, after "Auto Place & Route" command, we get the following schematic.

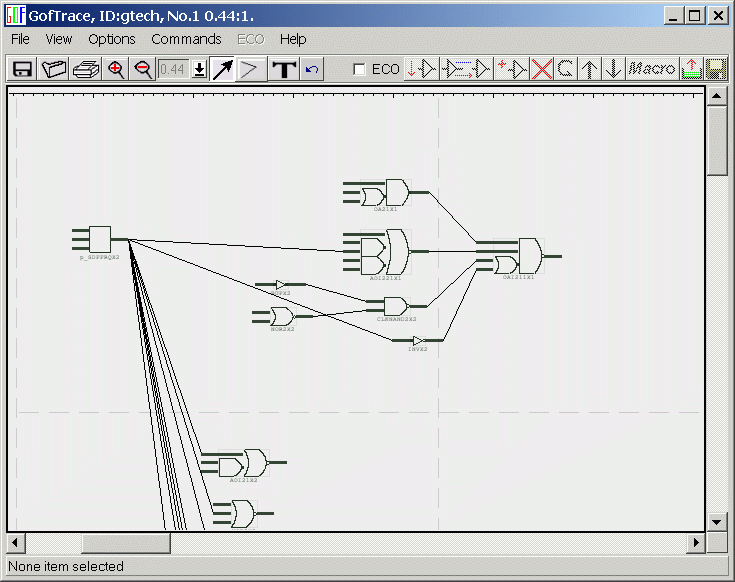

• Users can choose to place the gates themself. Do "Reset Route" and use Mouse-Left-Button to move the gates.

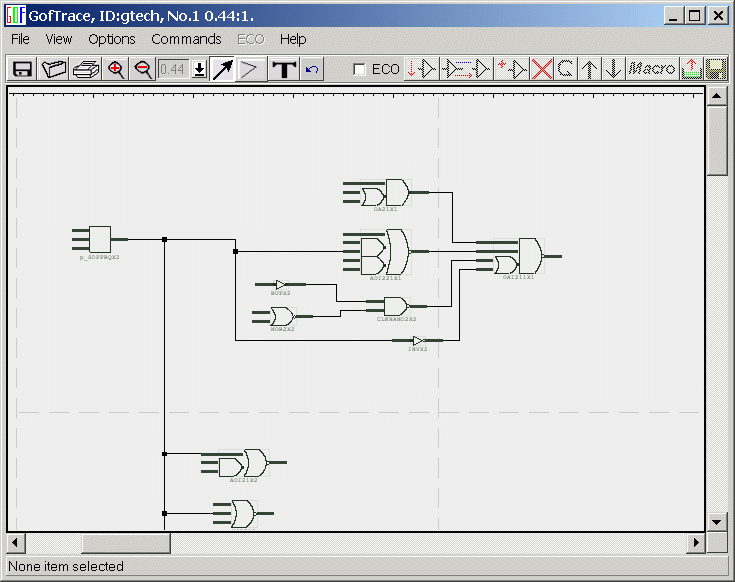

• And do command "Auto Route"
