1.18. Perl Script Interface in GOF (Need ECOPRO license to run this feature)

• From Version 2.203, GOF built a Perl Script Interface.
• In GofViewer Actions->Run Perl Script

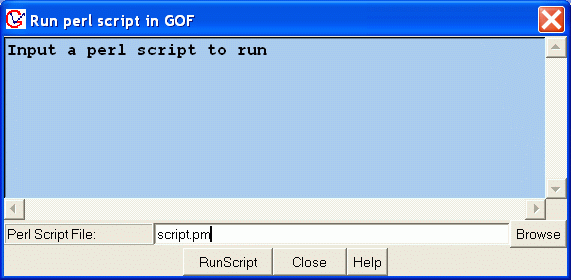

• Run perl script window pops up, input the file script file.

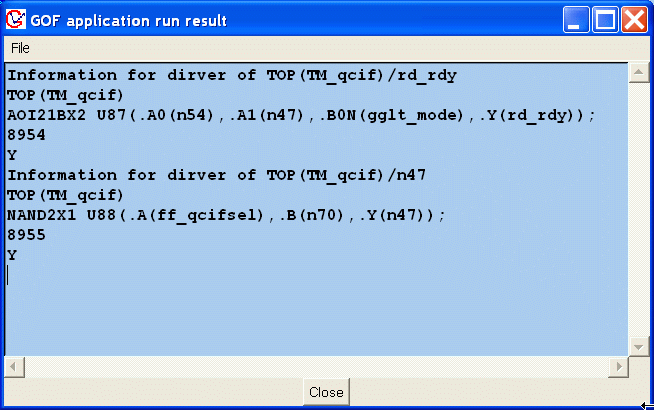

• print command will print on the result window.

• Click  gofext_APIs.pm to read the example code.
• The script should be a package naming GOFPERL
• Every API called should have "&" prefix, E.G. "&get_driver"
• Function "RUN" should be defined.

package GOFPERL;
sub RUN{

    # more code here
    my $driver = &get_driver($net, $path);

    #more code here ...
}

• GOF Perl APIs.
