2.25 Manually Route.

• Users can route wire manually if automatically routing result is not satisfied.

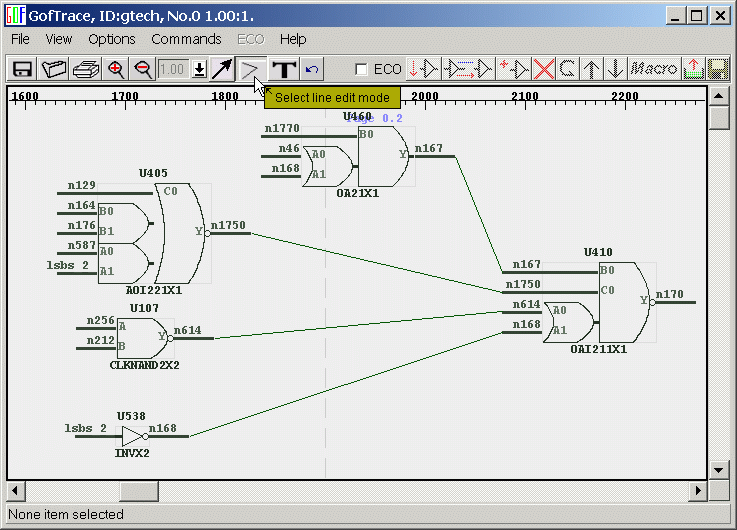

• Click 'Line Edit' button.

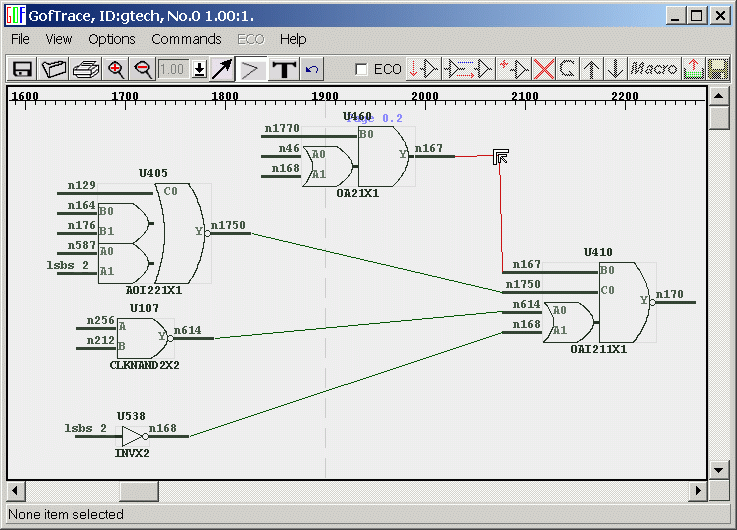

• Place the cursor on the line needs to be routed, press Mouse-Left-Button, don't release, and move the mouse. Release mouse when the line has reach the proper position.

• If you don't like the edited line, simple press Mouse-Right-Button on the line corner. The corner disappears and the line is straighten.
