2.8. Wavefrom Restore File generation.

• As it has been covered in GofViewer Create Waveform Restore File,  you can create Waveform Restore File in GofTrace as well.
• Select GofTrace->Options->'Dump Waveform Restore File'

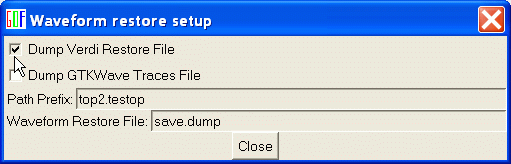

• waveform restore setup window pops up. Fill in correct setup.

• In GofTrace, click pin or wire. Press 'Crtl' and click to select more signals.

• Waveform Restore File for GTKWave format.

<?XML version "1.0"?>
<!-- GTKWAVE saved traces, create by GOF
<!-- at Sat Dec 24 15:46:03 2005

<config>

  <traces>
  <trace name=" top2.testop.n2896" mode="bin" rjustified="yes" selected="yes">
   <signal name=" top2.testop.n2896"/>
  </trace>
  <trace name=" top2.testop.n2897" mode="bin" rjustified="yes" selected="yes">
   <signal name=" top2.testop.n2897"/>
  </trace>
  <trace name=" top2.testop.cmdisp" mode="bin" rjustified="yes" selected="yes">
   <signal name=" top2.testop.cmdisp"/>
  </trace>
 </traces>
</config>
