1.23. Hyperlink for fast access

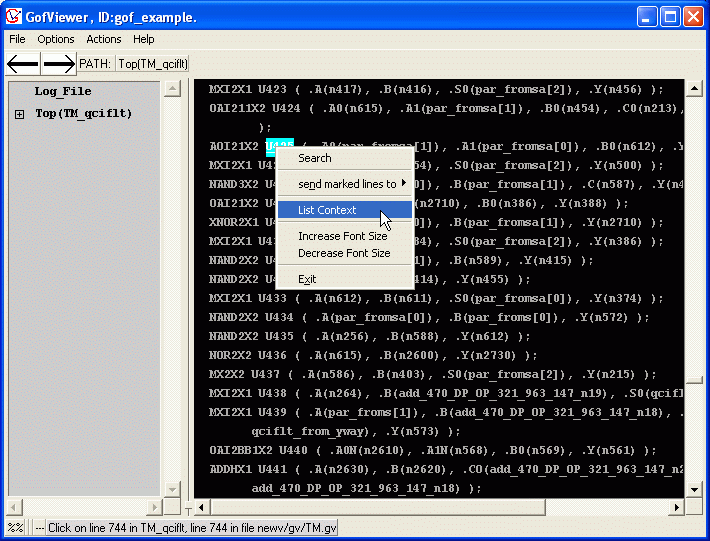

GOF fully utilizes GUI to create hyperlinks for fast accessing information. For example, mouse-right-click on any string on netlist, and select  "List Context", a pop window will give the proper description of the string.

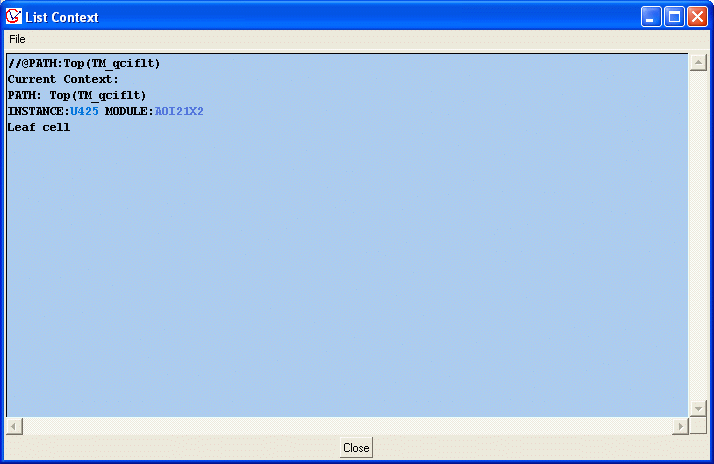

It is instance of a leaf cell, a window pops up to show the information of the cell. If the clicked string is net, the content will be different.

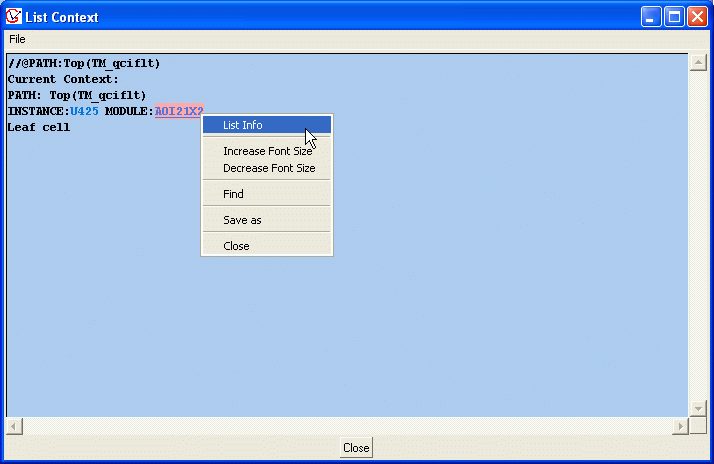

The different colors marked strings in the pop window have its own linked information. Like leaf cell module name has "List Info" option.

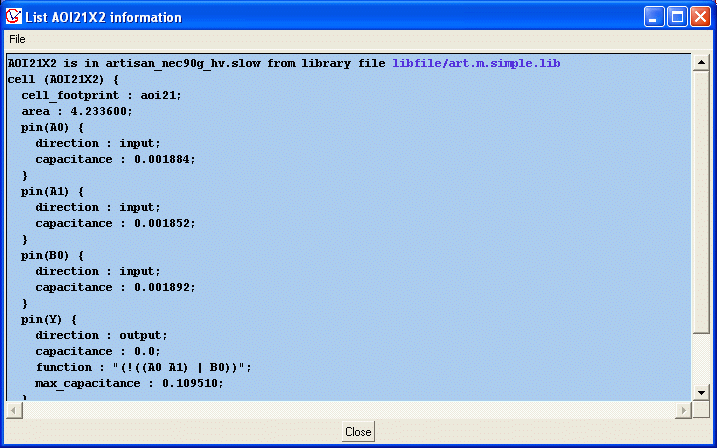

The content of the leaf cell in library is displayed.

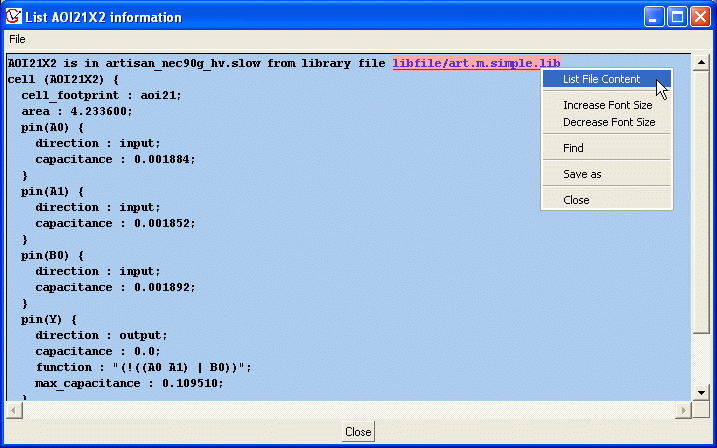

The library file name has linked information as well.

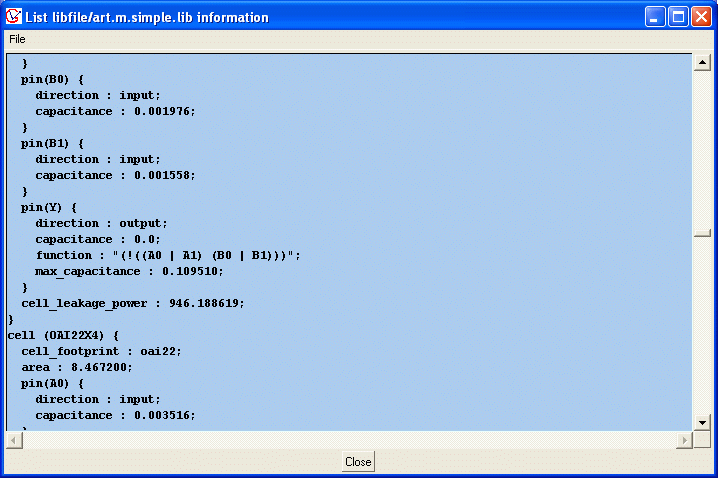

The whole library file content is listed.
