1.6. Edit Module.

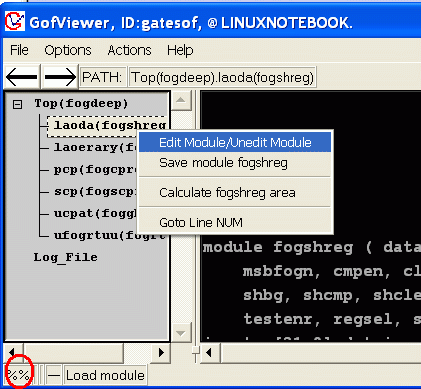

• Mouse-right-click on hierarchy window(left side), a menu pops up.

• Select 'Edit Module/Unedit Module', the editable symbol will toggle between '%%' and '--'
• '%% 'means the module is uneditable, '--' means the module editable.

• If edit symble is '--', you can edit netlist in the netlist window(right side).
