2.12. Edit Cell.

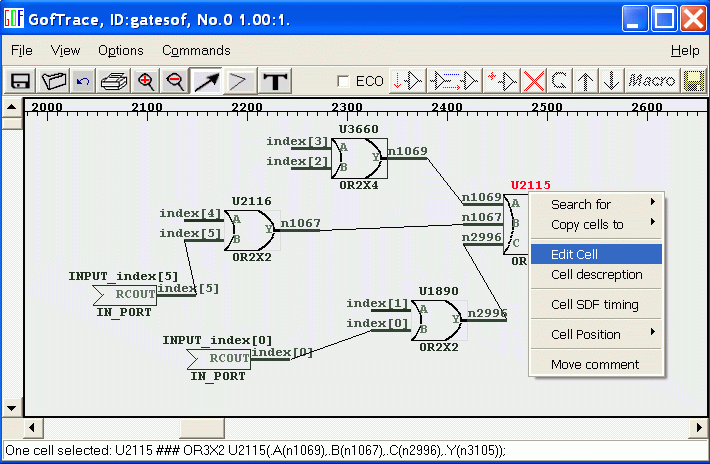

• Select a cell, mouse-right-click to popup menu select "edit cell".

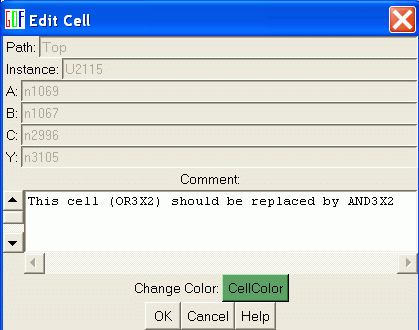

• Or Double click on the cell to bring up edit cell window.

• In GofTrace path/instance and pin connections are not editable. They can be edited in GofECO

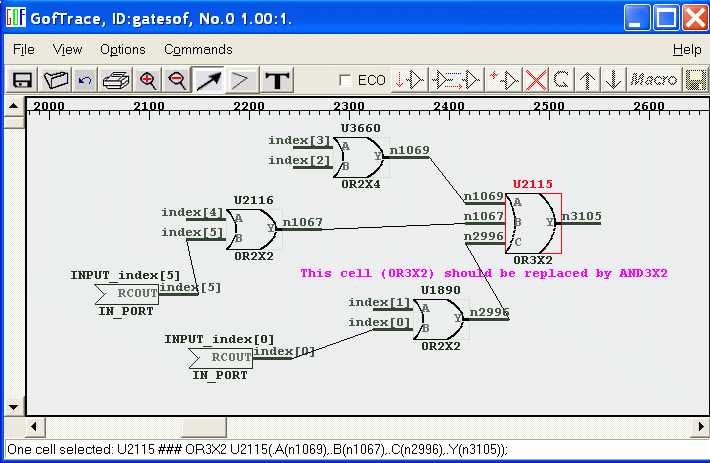

• Comment and CellColor is editable.
