1.5. Driver and Load of Net.

  • Left click on net and the net is highlited.

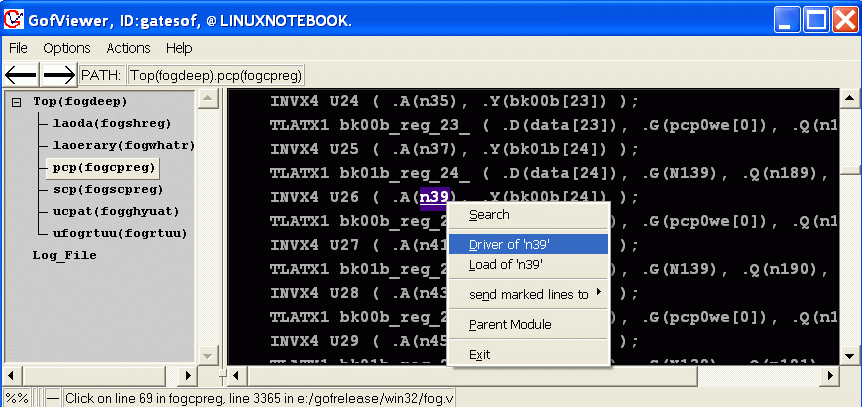

  • Right click on text window (right half window), pop menu appear



  • Select Driver of 'n39' to trace back to driver of n39.

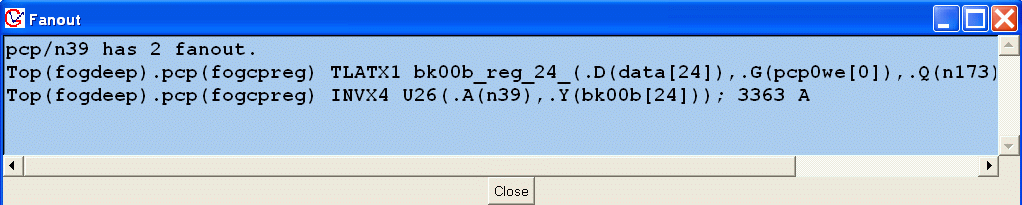

  • Select Load of 'n39' to display fanout of n39, a window pop out to display detail fanout
