1.8. Calculate area

  • Mouse-left-click on hierarchy window (left side) to select on instance(module) pair.

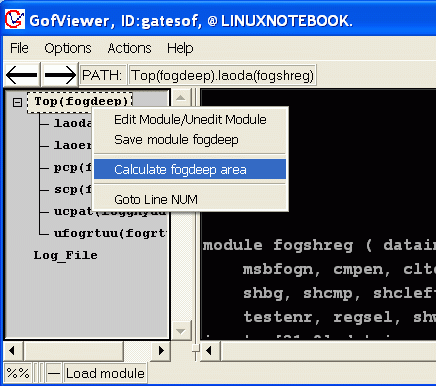

  • Mouse-right-click on hierarchy window (left side) to pop up menu and select 'calculate module area'

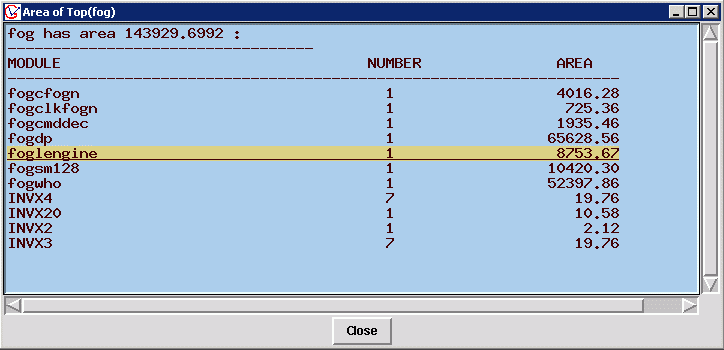

  • A window appears to display area result.



  • Remember to load synthesis library before to calculate area. Otherwise a warning window will appear and area result are all zeros.



  • Goto Actions Menu to see Load Synthesis Library File options.
