2.17.3 Auto Route.

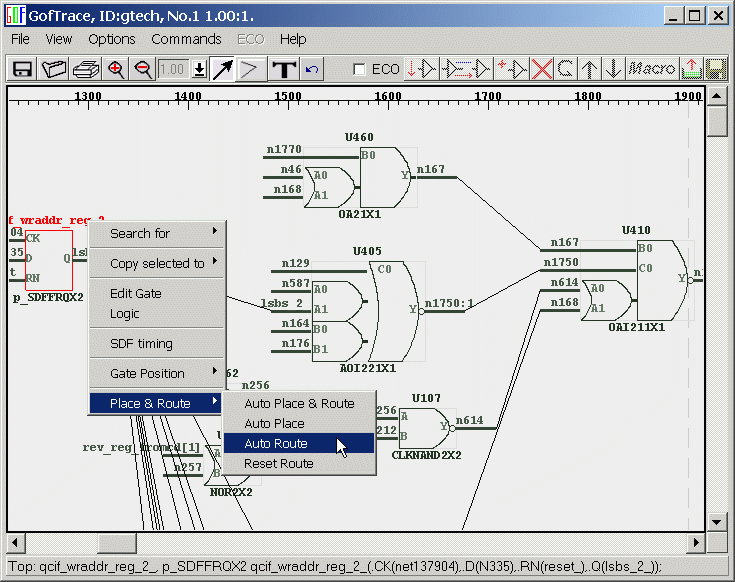

  • Mouse-Right-Click on the schematic to pop menu, select Place&Route->Auto Route.

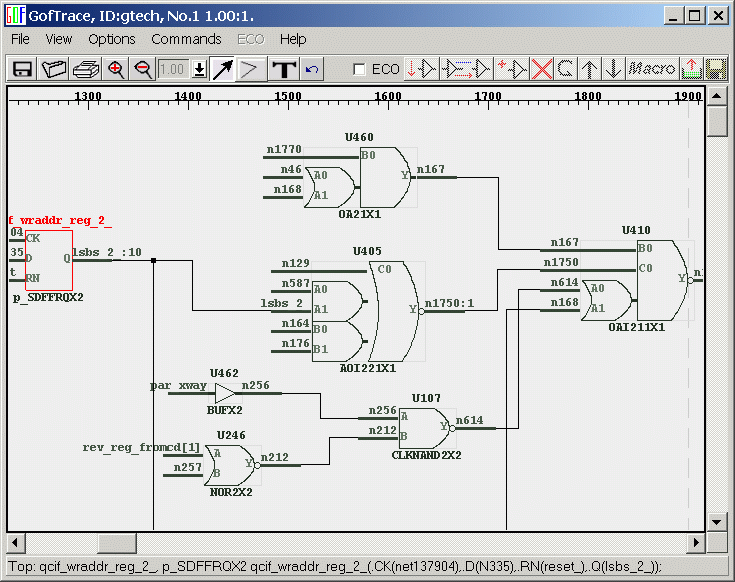

  • The following is GOF Auto Route result.
