2.17.2 Auto Place Gates.

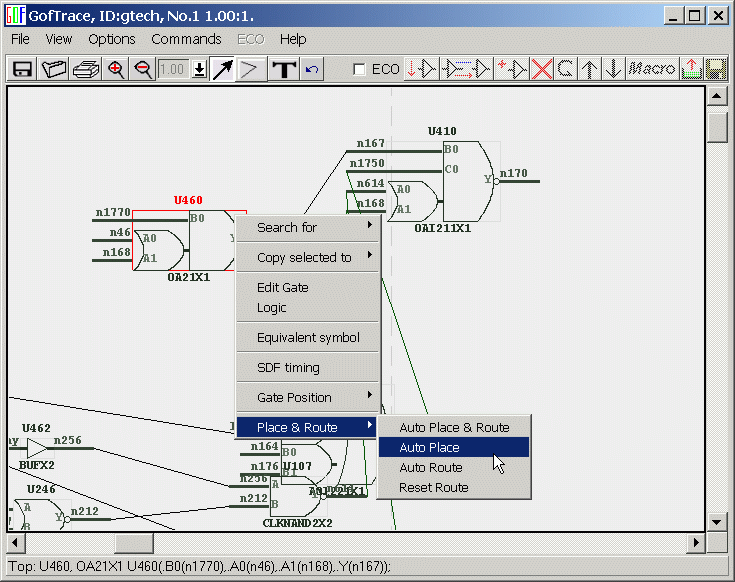

  • Mouse-Right-Click on the schematic to pop menu, select Place&Route->Auto Place

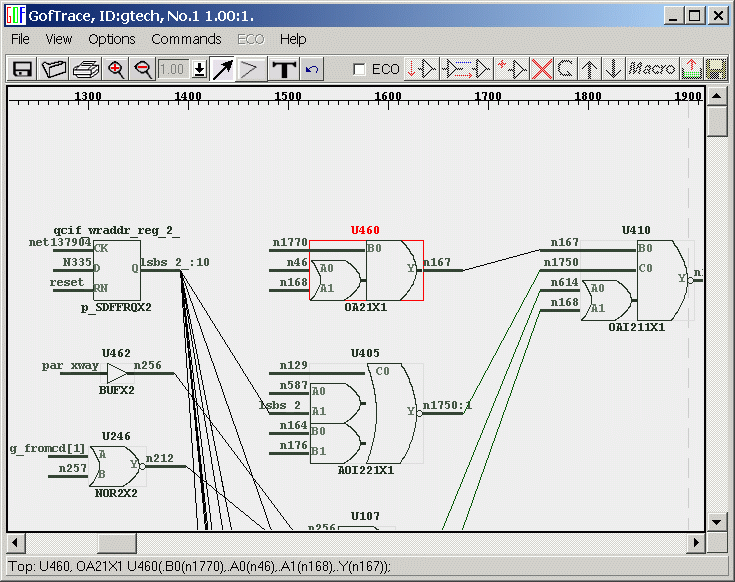

  • GOF places all the gates. When do the command, one gates can be selected to move to view to the gate when the command is done.
