2.23. Add comments on the Schematic.

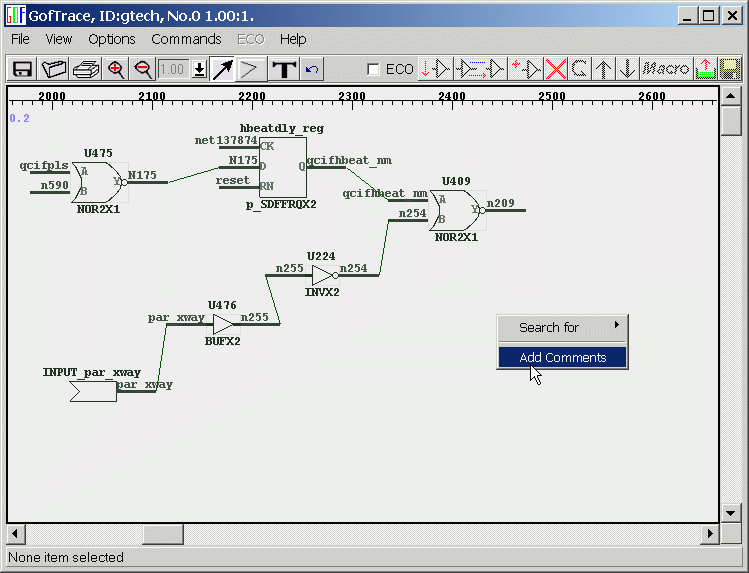

• Don't select any gates or nets. Mouse-Right-Click on the empty location, the pop menu.
• Select 'Add Comments'

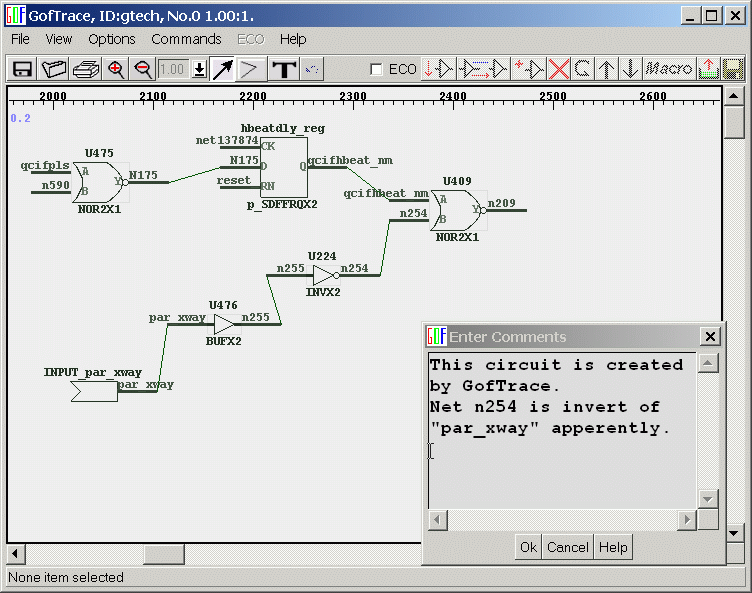

• 'Enter Comments' window pops up for adding comments.

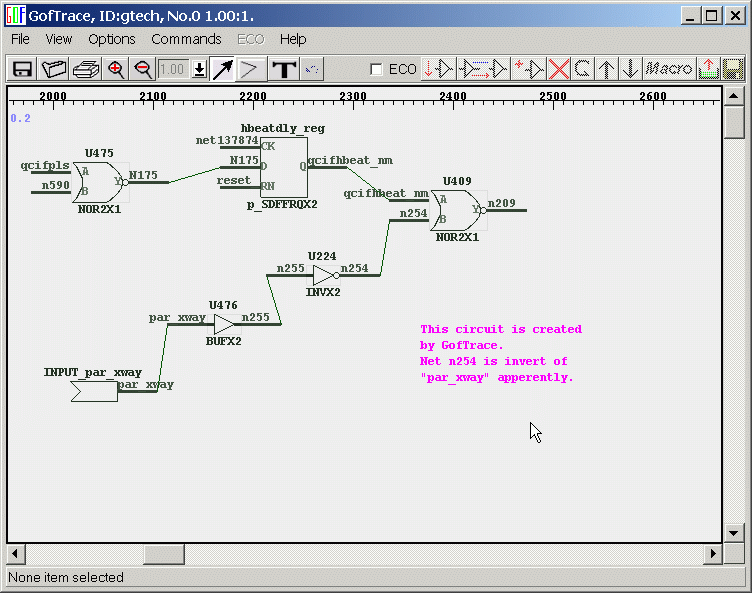

• Click 'Ok' to add the comments on the schematic.

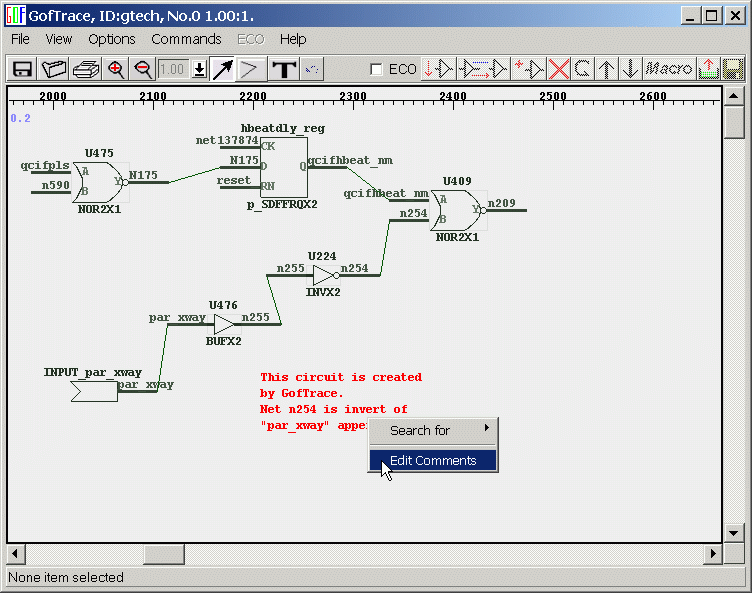

• You can move the comments or edit the comments any time.

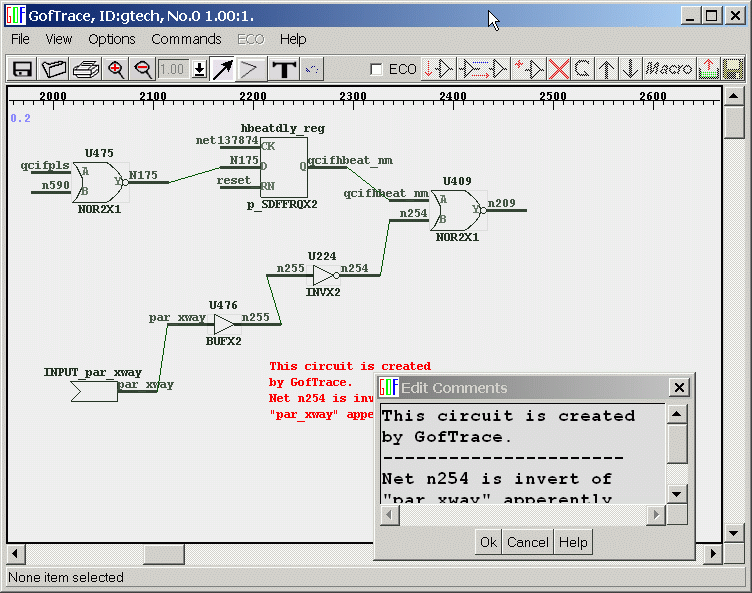

• Adding more text in the comments.

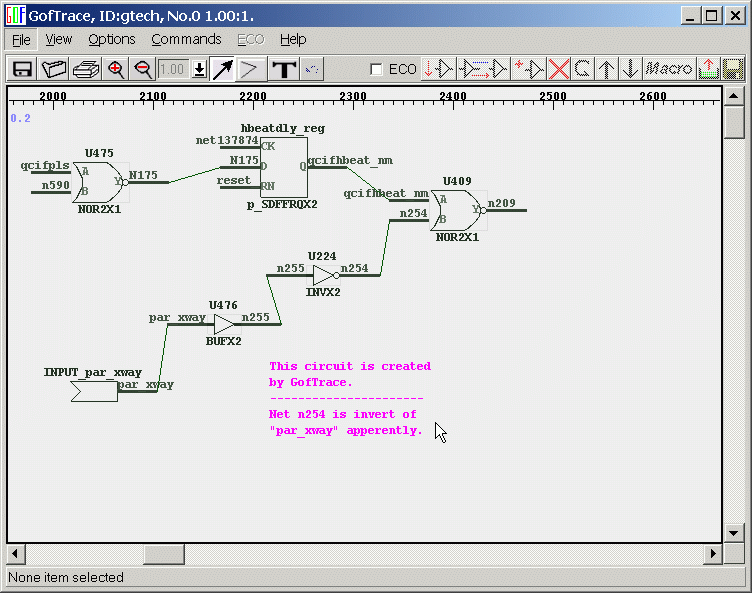

• The comments is modified as expected.

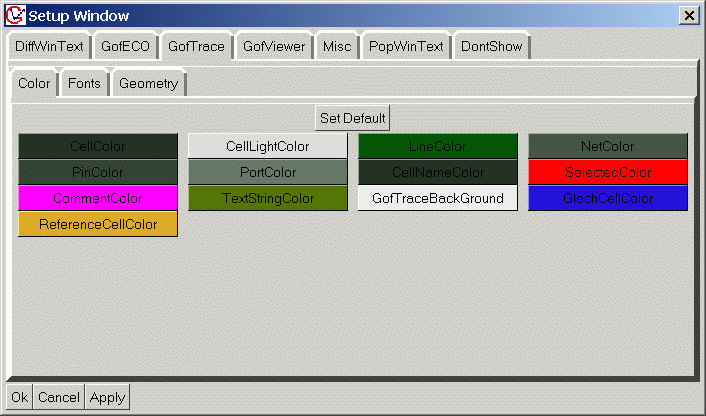

• You can change color and font set of comments by Menu Options->Setup->GofTrace->Color and Fonts
